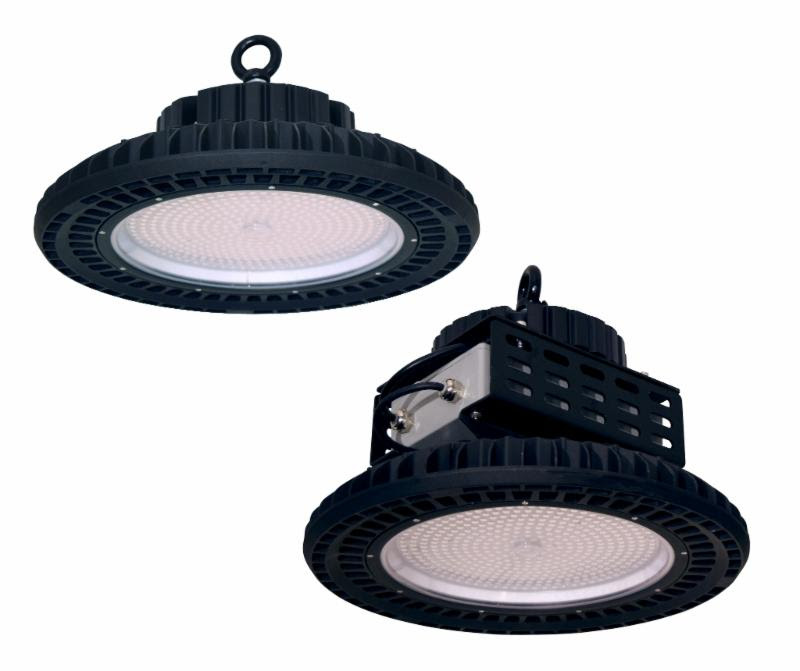

The Champion Series High Bay available in two (2) wattage packages: 200W/22,000 Lumens and 240W/28,000 Lumens. Utilizing custom optic lensing, the Champion series is available in three different beam spread distributions; 45 degrees, 90 degrees, and 120 degrees. The luminaire comes standard with 120' of flexible cable and eye bolt for hook mounting
Optional mounting methods include:
- 120V and 277V twist lock receptacles allow for easy retrofit opportunities
- Adjustable U-Bracket for conduit, ceiling or wall mounting
- Optional motion sensor offers field adjustable detection zones, hold time, stand-by, dimming level, and daylight sensing
- Optional 90-minute battery backup (10% output) with integrated test switch offered for emergency lighting needs
- Light engine consists of 256 high output LEDs driven at 200W or 240W
- Excellent fixture-to-fixture color consistency available in 2700K, 3000K, 3500K, and 4000K; CRI 80min., 83 typical
- The Champion High Bay series come standard with 120-277V, 0-10V dimming driver capable of dimming to 5%
- cETLus Certified to UL standards on base models
- cULus Certified for all Battery back-up versions to UL924, UL1598 and UL8750
- IP65 Rated
